PRODUCTS

SV-Max
Smatii View Max

모빌리티 로보틱스를 위한 통합 LTE 통신단말기

LTE (4G)
  • LTE B1, B3, B8
  • Data Speed 50Mbps UL / 150Mbps DL (FDD Cat.4)
  • GPS 지원
Features
  • Quad core ARM Cortex-A72 / RAM 8GB
  • Video H.264 1080p, 720p
  • WebRTC Video Streaming
  • UART(Serial) x 2 port
  • Micro HDMI(input) x 1 port
  • USB (C type) x 1 port
Other
  • Aluminum Case (Operating Temperature: -20℃ to 85℃)
  • Dimensions: 44mm x 65mm x 23mm, Weight: 80g (excluding antenna)
  • Power Consumption: 3W / Power Supply: DC 12V

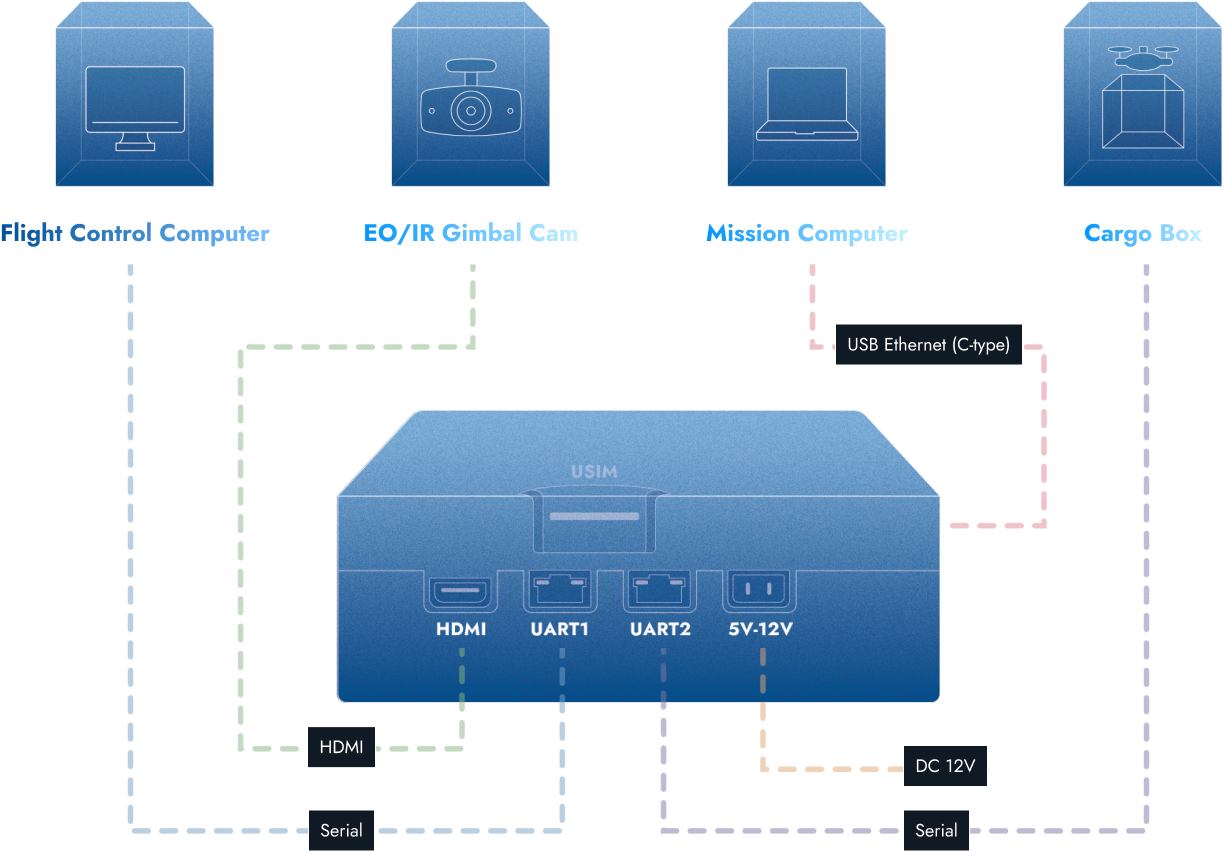

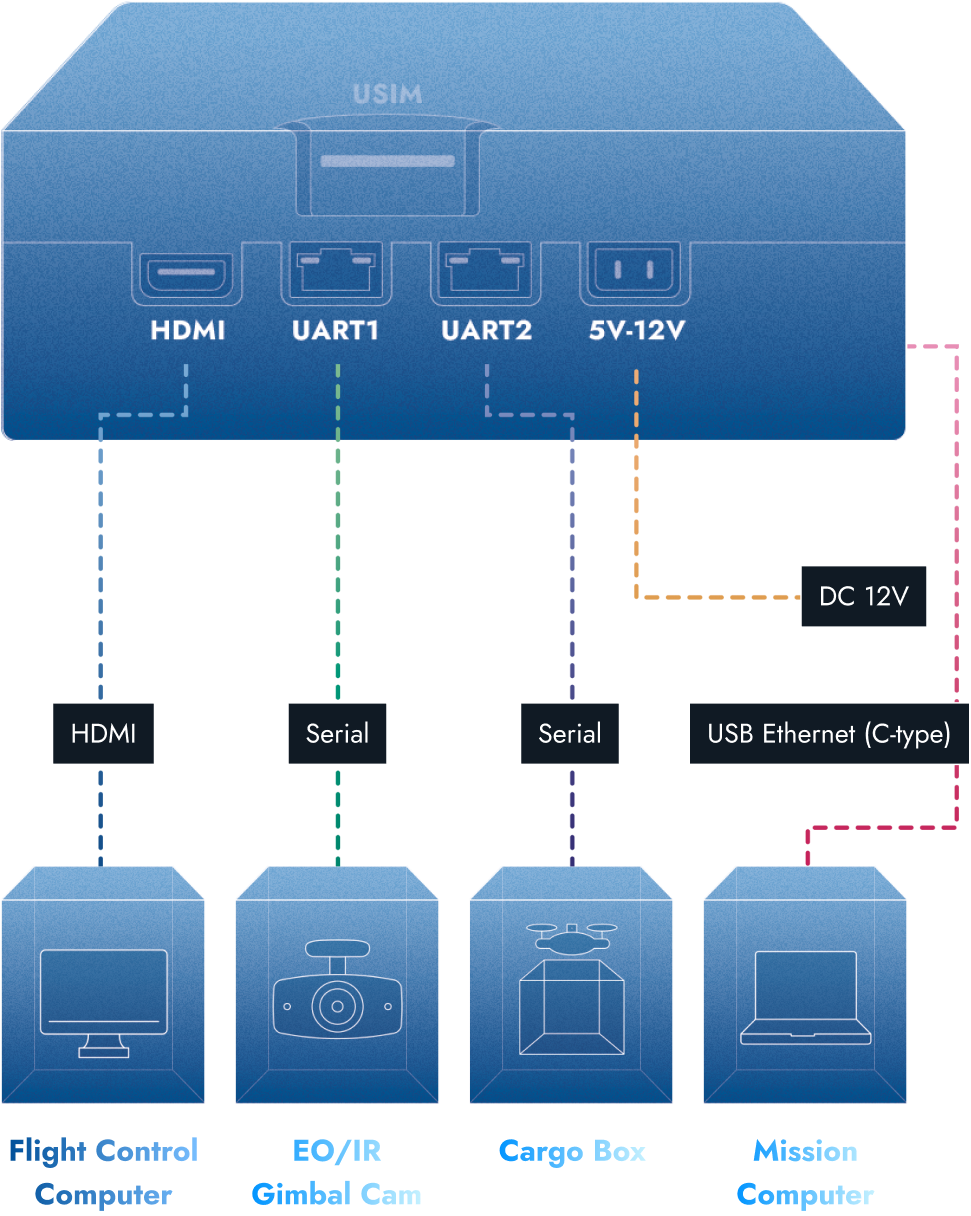

통합 통신네트워크 구현

real-time video, control, and mission
